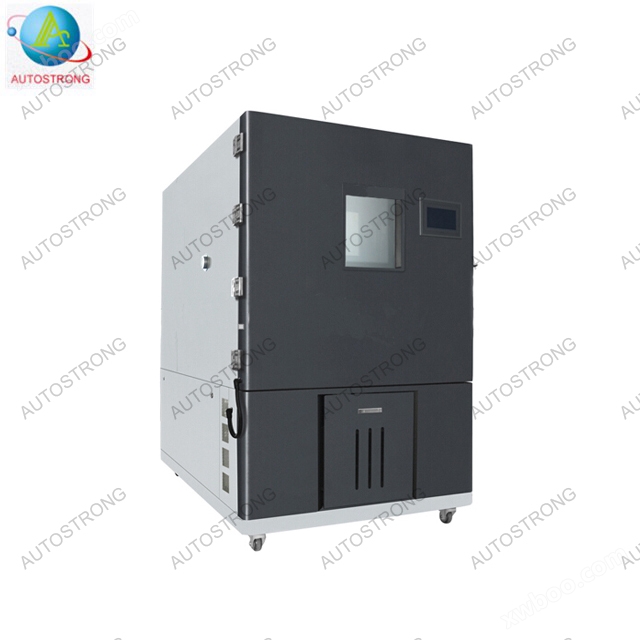

Battery Thermal Cycling Test Chamber
Description:Battery Thermal Cycling Test Chamber with high precision perfect external design, external with double sides cold rolled plate electrostatic powder coated material, internal with SUS#304 high temperature resistant stainless steel.
Model:- Manufacturer:
- Update time:2023-11-29
- Visits:0
Product details
It is widely applied for electronic and electric products, components and materials by constant
high low temperature, temperature change, rapid rate temperature change ,damp heat etc
environmental simulation reliability test .
| Model | AUTO-BT225 | AUTO-BT500 | AUTO-BT800 | AUTO-BT1000 | AUTO-BT1500 |
| Internal Dimension (cm) | W60*H75*D50 | W80*H90*D70 | W100*H100*D80 | W100*H100*D100 | W150*H100*00 |
| External Dimension(mm) | W110*H168*D195 | W130*H183*D220 | W150*H173*D235 | W150*H193*D256 | W150*H193*D256 |
| Temp. Range | B:-20—150℃ C:-40-150℃ D:-70-150℃ | ||||
| Humidity Range | 20-98%RH | ||||
| Temp.Heating / Cooling capability | (5℃/10℃/15℃)min, liner or non-liner control | ||||
| Temp. Fluctuation | ≤±0.5℃ | ||||
| Temp. Deviation | ≤±2℃ | ||||
| Temp. Uniformity | ≤±2℃ | ||||
| Humidity Fluctuation | ≤±2.5℃%RH | ||||
| Humidity Deviation | ≤+2,-3%RH (≥75%RH);≤±5%RH (≤75%RH) | ||||
Standard Compliance: UL1642, UL2054,IEC62133,UN38.3, IS16046 etc.
