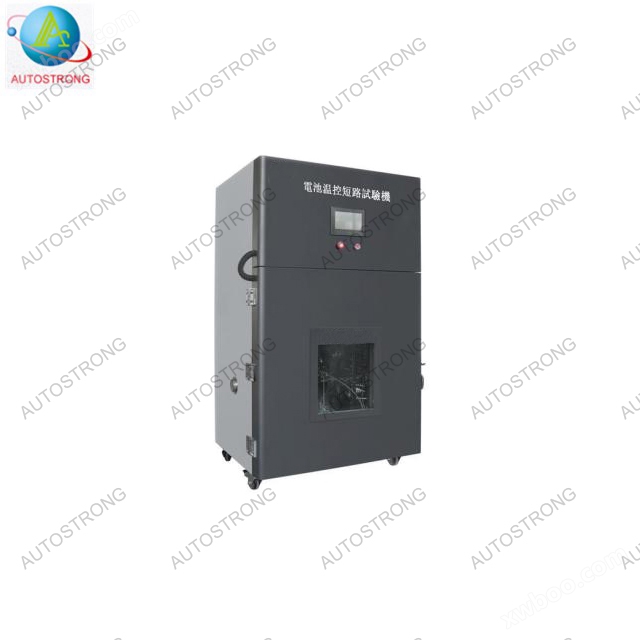

Battery Large Current Short-Circuit Test Chamber
Description:AUTOSTRONG RD team selects industrial DC magnetic contact with full copper terminal and internal copper current conduction, and internal active bead axial fan is mounted to cool to ensure the test system more safer and reduce the test machine power
Model:- Manufacturer:
- Update time:2023-11-29
- Visits:0
Product details
Remote integral Battery large current short-circuit Tester is designed to complies with standards at the internal resistance far less than 5mΩ to achieve large short-circuit current. In additional, a load-bearing capacity must be designed in electrical system for short-circuit system.
| Model | AUTO-B8102 |
| Max. Short Circuit Current | 1000A |
| Internal Resistance System | 5mΩ, 80±20 mΩ |
| Remote Control Distance | 7m (without solid barrier) |
| Mechanical Endurance | 300000times |
| Electrical Endurance | Resistance load 50000 times |
| Temp. Range | 0℃ ~ 80℃(complied to testing condition :20℃±5℃and 60℃±5℃) |
| Temp. Fluctuation | ±1℃ |
| Temp. Deviation | ±2℃ |
| Internal Dimension | W600 X D500 X H600mm |
| Refrigerating System | French Tecumseh Compressor |
| Exhaust System | Exhaust port on machine back side. |
| Power Source | AC220V |
| Power | 3.0KW |
Standard Compliance: UN38.3, UL1642, UL2054, QC 743/744, MT/T 1051.
