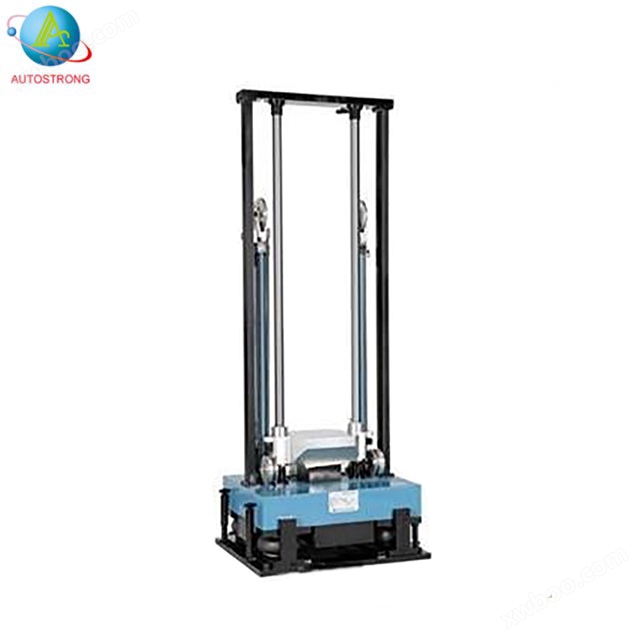

Battery Accelerated Shock Impact Testing Machine

Description:It ‘s series full automatic shock test system is designed for measuring and ensure shock performance of products and packages. It can do normal shock test with half sine wave, square wave, saw tooth wave etc., simulate products under real environment

  • Model:
  • Manufacturer:
  • Update time:2023-11-29
  • Visits:0
Product details

1).IS Series automatic shock test system with Windows operating system, easy for operation, operator only need to type into testing data, system will automatic configurate parameters and control machine, finish shock test accurately.

2). With anti re-shock brake device, shock table fall freely, when shock wave pad rebound, hydraulic brake piston impact thus shock table braking ,avoid secondary shock and achieve accurate shock data.

3).With effective vibration damping device; for large shock tester, when do shock testing it has large instantaneous impact force, this device largely reduced the shock impact to the floor, small than 350×350mm ones no need special foundation, easy for installation .

4). Digital setting of shock height, shock table automatically lifting ,with high control accuracy and good repetitively .

5).Configured with shock measuring system, shock energy data and wave with real time display .

6).With high acceleration generator, for small testing specimens which need high acceleration shock test, able to fix high acceleration generator on shock table, it can obtain higher acceleration than IS series shock tester according to impact energy transfer principle .

For specimen smaller than 200×200mm the testing requirements is: peak peak acceleration 5000-50000m/s2, acceleration duration time 0.2~1ms.


Max. Loading Capacity 10kg  (customize)
Bench Dimension  200mm×200mm(customize)
Pulse Wave Half sinusoidal wave
Shock Impact Peak Acceleration Half sinusoidal wave:150~20000m/s2
Pulse Duration Time Half sinusoidal wave: 0.6~20ms
Max. Impact Frequency 80 times/min
Max. Drop Height 1500mm
External Dimension  1000mm×500mm×2700mm
Power Consumption  2.5KVA
Bench Mass 1500kg
Power AC 380V±10% 3 Phase/50Hz
Anti-secondary shock advice Hydraulic Friction Braking Device
Working Condition
Power AC 380V±10% 3 Phase  50Hz
Environment Temp 5℃-40℃
Relative Humidity ≤90%(25℃)
Surrounding Environment No corrosion medium, dry, good ventilation, away from electromagnetic influence and strong vibration source.



Standard Compliance:

1).YD/T 2344.1—2011 LiFePO4battery system for telecommunications. Part 1:Integrated battery system;

2).GB/T 2423.5 Environmental testing for electric and electronic products. Part 2: Test
methods. Test Ea and guidance: Shock;

3).GB/T 2423.6 Environmental testing for electric and electronic products. Part 2: Test
methods. Test Eb and guidance: Bump;

4).IEC 68-2-29 Test Eb and guidance: Bump;

5).JJG497-2000 Verification Regulation of Bump Testing Machines.
