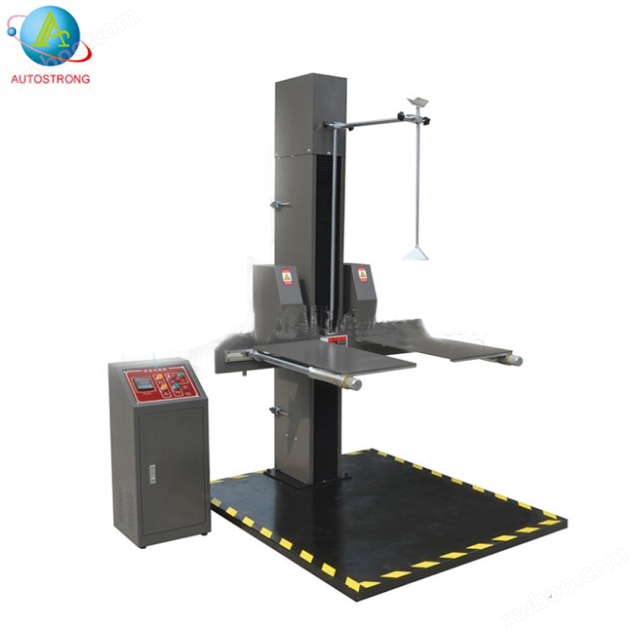

Double Wing Drop Impact Tester
Description:Drop Impact Tester test large and heavy package products’ drop impact performance through simulate real face ,edge and corner drop conditions. This equipment mainly used to inspect package products drop resistance capability during transportation, lo
Model:- Manufacturer:
- Update time:2023-11-29
- Visits:0
Product details
1).With up and down displacement limitation, safety reliable.
2).Lifting height controllable,meet users different requirements.
3).Zero drop tester adopt double rail guidance,lifting process more stable and reliable.
4).Drop tester able to testing face,edge,corner of specimen from different direction .
5).When install no need special base, only have to put it on flat marble or cement floor.
| Model | AUTO-BF315 | AUTO-BF320 |
| Drop Height | 400~1500mm(about ) | 400~2000mm(about) |
| Overall Dimension | W1200 X D1400 X H2200mm | W1200 X D1400 X H2700mm |
| Mass | About 600kg | About 700kg |
| Max. Specimen Weight | 0~60kg , 100kg,200kg available for customize | |
| Max. Specimen Dimension | W1080 X D760 X H1500mm or customize | |
| Display Method | Digital display , controllable | |
| Testing Method | Face, Edge, Conner full range drop | |
| Drop plate Material | Steel plate (hard wooden boards, marble,Acrylic plate, floor slab optional ) | |
| Drop Method | Electric Dropping | |
| Lifting Way | Electric Lifting | |
| Power | AC380V 50Hz, 0.75KW | |
Standard Compliance: ISO 2248 JIS Z0202-87, QC/T743/744 etc.
