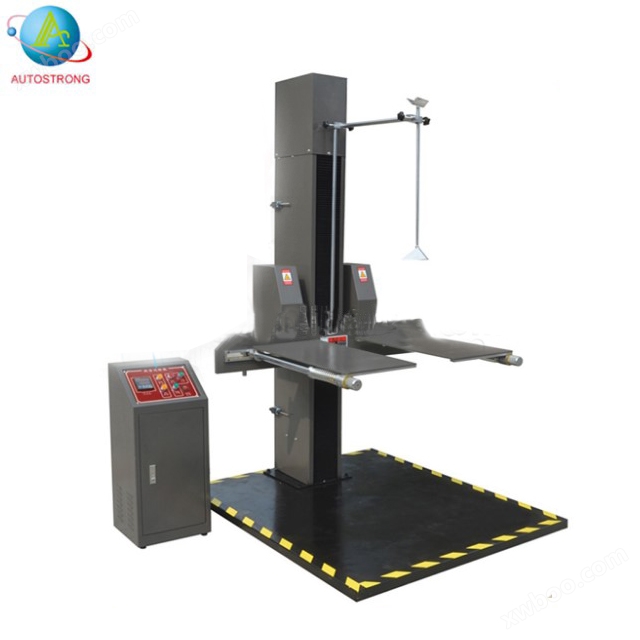

Zero Height Drop Impact Test Machine
Description:Zero highly drop test enginery larger drop test is mainly used for packaging, drop test enginery zero by a can quickly moving down E type fork as specimens rack, according to the test subjects requirements (surface, edges, Angle, experimental) plac
Model:- Manufacturer:
- Update time:2023-11-29
- Visits:0
Product details
Test, to ask board high-speed downward motion, from specimens, "E" type to pack the goods in fork dropped to negative glue, has set up a file in the high efficiency under the action of shock absorber, embedded in the floor flat, theoretically, zero drop test from zero can be highly scope drop test, drop height through the test requirements for digital set, and set according to highly automated execution experimental large packing goods fall and drop test specimen.
| Model | AUTO-BF15 | AUTO-BF20 |
| Test highly | 0~1500mm(adjustable) | 0~2000mm(adjustable) |
| Test space | 1000*1000*800mm(can be customized according to the requirements) | |
| Specimens max weight | 100kg, 200kg, 300KG, can bu customized | |
| tests | Edges, angles and surface | |
| Work power | 380V,50HZ&60Hz | |
| Drive mode | Motor drive | |
| Protection device | up and down has a reaction type protection device | |
| Impact plate material | 45 # steel, solid steel plates | |
| Height shows | LED digital display, and can be set high stop function | |
| Bracket arm material | 45 # steel | |
| Accelerate device | Pneumatic type | |
| Drop way | Assolenoid style and pneumatic type comprehensive cooperation | |
| Weight | About 1500KG | About 2000KG |
Reference Standard : JISZ0202-87, ISO2248-1972(E)
