Introduction:

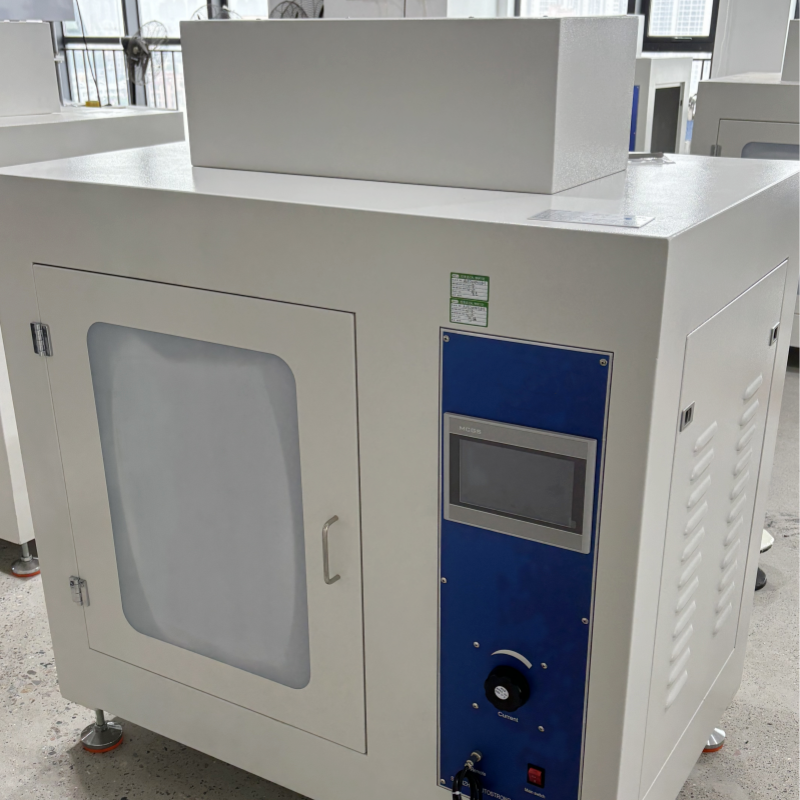

Protective Clothing Flammability Tester is designed and produced according to the ISO 15025 standard for flame testing of protective clothing, and can test the flame spread state of protective clothing under small flame impact. The tester is mainly used for simulating the evaluation of flame spread performance during the fire hazard of protective clothing, and for determining the fire hazard of combustible materials such as fabric materials or other similar functional purposes.
Conform to standard:
ISO 15025:2016 (Protective clothing — Protection against flame — Method of test for limited flame spread)
Technical Specification:
Model | AUTO-FPC |
Test background | black background |
Specimen clamp size | (200 ± 2) mm × (160 ± 2) mm surface combustion specimen (200 ± 2) mm × (80 ± 2) mm bottom burning sample |
Standard burner Flame height | Horizontal 25mm ± 2mm Vertical 40mm ± 2mm; nozzle mouth 0.19mm |
Automatic time recording | Automatic storage; Time timer accuracy of 0.1s |
Burner angle | Horizontal, vertical, 30 ° adjustable |
Chamber volume | ≥0.5m3 |
Control | PLC intelligent integrated control, touch interface operation |
Display panel language | English,accept customized other language |
Power Supply | 800VA ,220V, 50~Hz,single phase |
