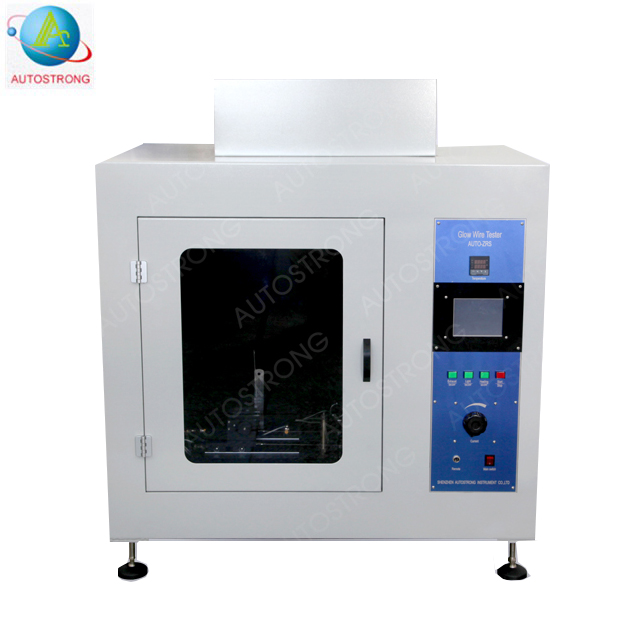

IEC60695-2-10 Fire hazard testing glow wire apparatus
Description:The Glow Wire Apparatus is designed to carry out fire hazard testing on electrotechnical products in accordance with the provisions of IEC60695-2-10,IEC60335-1 etc standard.
Model:AUTO-ZRSA- Manufacturer:Factory
- Update time:2025-05-06
- Visits:51
Introduction:
The Glow Wire Apparatus is designed to carry out fire hazard testing on electrotechnical products in accordance with the provisions of IEC60695-2-10,IEC60335-1 etc standard.
The control unit is supplied with all the controls and metering necessary to accurately set the temperature of the glow wire. The wire current is continuously variable by means of the panel-mounted controller and is monitored by the built-in ammeter.
A digital temperature indicator is fitted which, in conjunction with the thermocouple supplied,accurately measures the glow wire temperature. The electrical circuit of the control unit is fully protected by fuses and a miniature circuit breaker and incorporates mains on/off switching and push button control of the output current. Self contained cabinet with large viewing window and dark colored interior.
Conform to standard:
IEC60695-2-10:2013,IEC60335-1,UL746A,GB/T5169.10-2006
Technical Specificiation：
| Model | AUTO-ZRSA |
| Glow Wire | Ø 4mm±0.04mmNi/Cr(80/20), standard |
| Temperature Range | 500 ~ 1000 °C± 2 °C continuous adjustable |
| Thermocouple | Ø1.0mm Type K (Ni/Cr - Ni/Al), armored sheath can withstandtemperature 1100°C |
| Ironing into depth | 7mm ± 0.5 mm |
| Sample pressure | 1.0N ± 0.05N |
| Test Speed | 18±3mm/s |
| Test background | black background |
| Test process | automatic control independent convulsions |
| Chamber | ≥0.5m |
| Control | PLC intelligent integrated control, touch interface operation |
| Consult standard | IEC60695-2-10:200 UL746A |
| Languange | English,accept customized other language |
| Power supply | 800VA 220V 48~60Hz 800VA single phase accept customzied power supply |
