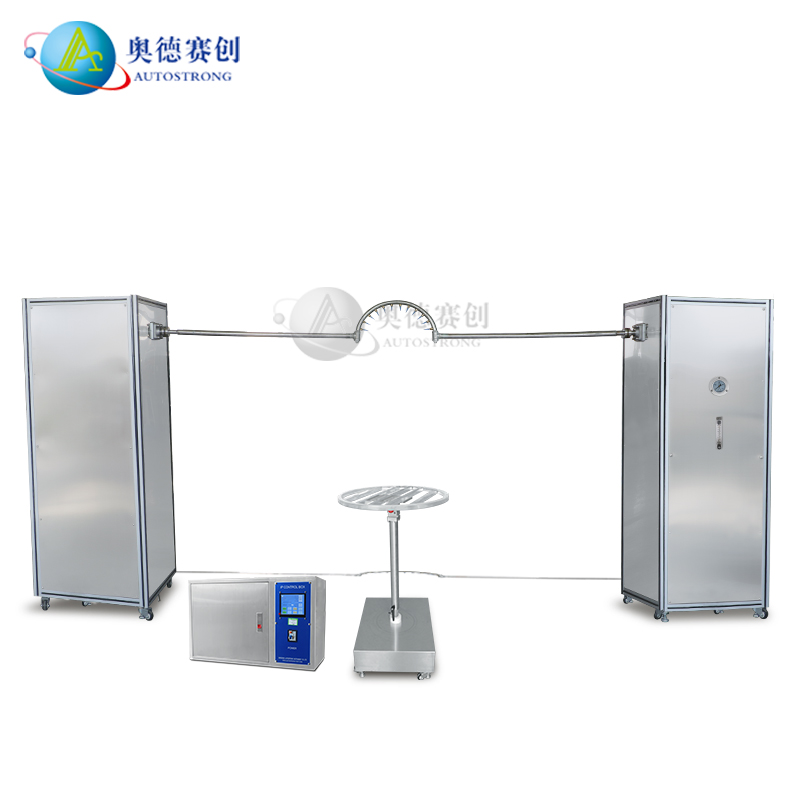

IEC60529 IPX3 IPX4 Oscillation Tube Tester

Description:IEC60529 IPX3 IPX4 Oscillation Tube Tester

  • Model:AUTO-IPX3/4
  • Manufacturer:Factory
  • Update time:2025-05-10
  • Visits:157
Product details

 Introduction:

IEC60529 IPX3 IPX4 oscillation tube tester waterproof test equipment  is for checking the protection against water with spray nozzle of 0,4 mm bore are used to prove the degrees of protection for the second characteristic numerals 3 and 4 “Protection against Spraying Water” resp. “Protection against splashing Water”.



The protection against spraying water is determined by causing the oscillating tube to oscillate over the specimen through an angle of 60°on either side of the vertical each at a speed of about 60°per second, while the jets coming from a larger angle than 60°to the vertical are baffled by deflectors. But there is also a slightly amended regulation, according to which the oscillating tube with deflectors stands still in a vertical position, and the specimen is turned-for example on a turntable-at a convenient speed a vertical axis.

The dimensions of the specimen and the available room dimensions are main criteria for choice of a suitable plant.Oscillate tube:R200/ 400/600/800/1000/1200/R1400/1600mm optional.


Conform to standards:

IEC60529 IPX3 IPX4 oscillation tube tester/ laboratory equipment , IEC60598-1,IEC 60335-1, EN60335-1, IEC60950-1.


Features:
1.Touch screen controller
2.Oscillating tubes are stainless steel
3.Stainless steel nozzles removable for cleaning or replacing
4.Nozzles can be turned on or off to adjust the arc of the spray from the tube
5.Water supply unit includes water filter, pump, flow meter, electromagnetic valve and switch valve.
6.Two available flow rates to meet major standards
7.Oscillating tube angle can be adjusted freely from 40° to almost 360°
8.Stainless steel specimen support with easy height adjustment and two specimen bases.
