Introduction:

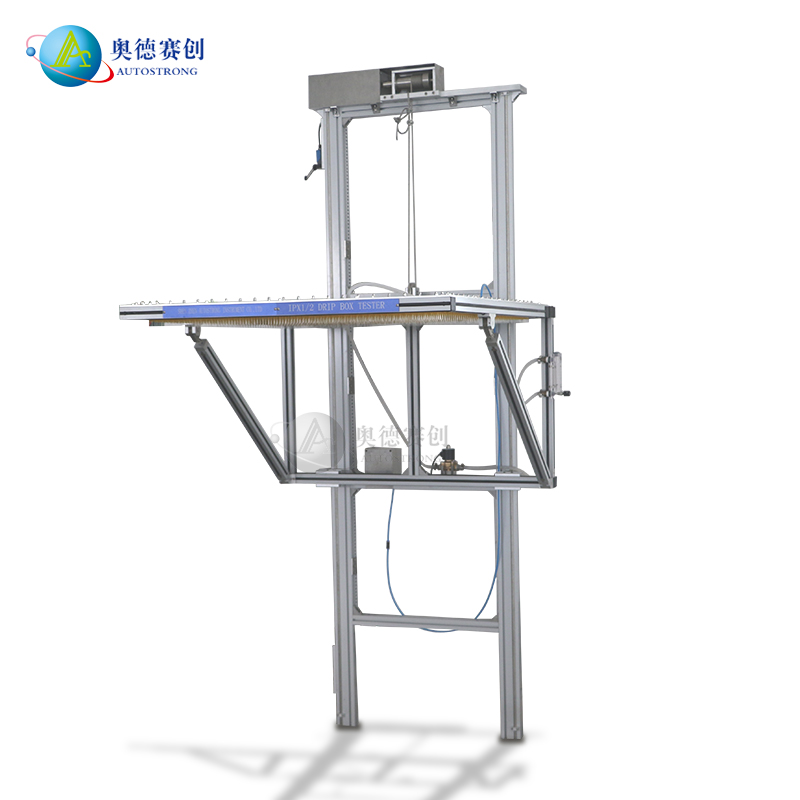

IEC60529 IPX1 IPX2 Drip Box Tester is designed to meet the requirements of IEC60529. It can accommodateone of three different size drip boxes - 500mm x 500mm, 700mm x 700mm, or 500mm x 1000mm.
The flow rate of drips is set and monitored by a user friendly touch screen controller that sets the water pressure to the drip box. The drip box and the water system is fully enclosed and filtered to minimize clogging of any nozzles.
Features:
1.All English Touch Screen Control;
2. Fully conform to IEC60529 IPX1 IPX2 Drip Box Test;
3. Stainless steel nozzles removable for cleaning or replacing;
4.Drip flow rate precisely controlled by controller and pump;
5. With filter to ensure clean water;
6.Drip box height electronically adjustable;
7.Motorized turntable connected to instrument controller;
8.Turntable tilts to 15°.
Conform to standard:
IEC 60034-5/1991-01 § 9.1 Table IV Fig. 3, IEC 60529/1989-11 § 14.1 Table VIII Fig. 3,
IEC60598-1/1999-02 § 9.2.3,IEC 60947-1/1999-02 Ann. § C.14.1,EN 60335-1/1994-09+
A11/1995-05 §15.1.1, EN 60950/1992-08 + mod. up to A4/1997-03 Ann. T,VDE0570 Part 1/
1998-07 § 17.1.1E, VDE 0630 Part.
Technical Specification:
Model | AUTO-IPX1/2 |
Drip Tank Size | 1120х1120MM accept customzied dimensions |
Drip range | 1000X1000MM |
Drip nozzle distance | 20X20MM |
Drip nozzle quantity | 51X51=2601 piece |
Drip nozzle diametr | inner Φ0.30MM |
Tank lift range | 500-2200MM |
Water | system with water filter |
Control | PLC intelligent integrated control, touch interface operation |
Consult standard | IEC60695-2-10:200 UL746A |
Languange | English,accept customized other language |
Power supply | 800VA 220V 48~60Hz 800VA single phase accept customzied power supply |
