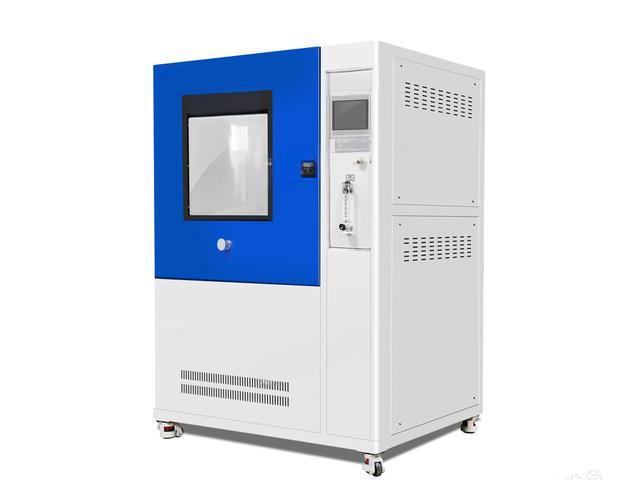

IEC60529 IPX1 IPX2 IPX3 IPX4 Waterproof Test Chamber

Description:IEC60529 IPX1 IPX2 IPX3 IPX4 Waterproof Test Chamber

  • Model:AUTO-IPC
  • Manufacturer:Factory
  • Update time:2025-05-07
  • Visits:140
Product details

Introduction:

IEC60529 IPX1 IPX2 IPX3 IPX4 Waterproof Test Chamber is fully designed and manufactured according to IEC60529 standard,it could doboth IPX1 IPX2 drip box test and IPX3 IPX4 oscillation tube test ,mainly apply for electrical product with small size,such as watch,mobile phone,ipad,motor parts,electronic components,
battery etc.Oscillation tube option:R200/400/600/800mm.


Conform to standard:

 IPX1/ IPX4/IPX3 IPX4/IP4K IEC60529,IEC60335,IEC60068, DIN40050.

Technical Specification:


For IPX1-2 Drip Box Test

For checking the protection against water to prove the degrees of protection with the second characteristic numerals 1 “Protection against water drops” and 2 “Protection of a specimen in a position of tilt against water drops”


For IPX3-4 Oscillation Tube Test

IEC60529 IPX3 IPX4 oscillation tube tester waterproof test equipment  is for checking the protection against water with spray nozzle of 0,4 mm bore are used to prove the degrees of protection for the second characteristic numerals 3 and 4 “Protection against Spraying Water” resp. “Protection against splashing Water”.



The protection against spraying water is determined by causing the oscillating tube to oscillate over the specimen through an angle of 60°on either side of the vertical each at a speed of about 60°per second, while the jets coming from a larger angle than 60°to the vertical are baffled by deflectors. But there is also a slightly amended regulation, according to which the oscillating tube with deflectors stands still in a vertical position, and the specimen is turned-for example on a turntable-at a convenient speed a vertical axis.
