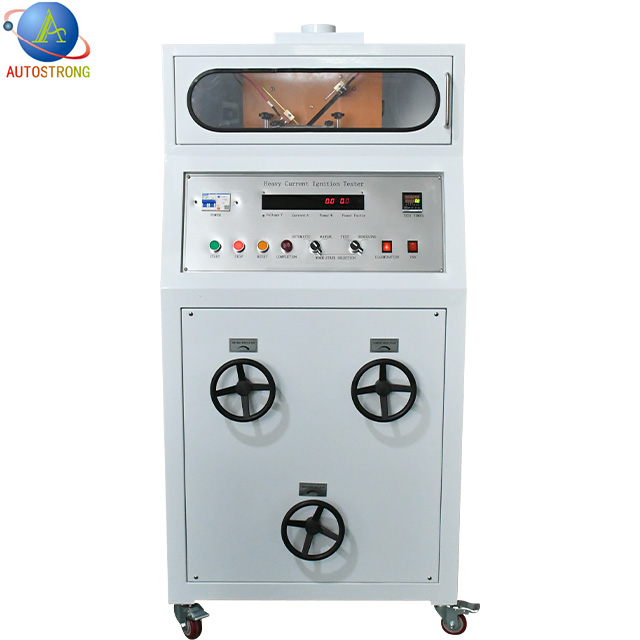

High Current Arc Ignition Tester

Description:High Current Arc Ignition Tester

  • Model:AUTO-HAI
  • Manufacturer:Factory
  • Update time:2025-05-19
  • Visits:102
Product details

Introduction:

High Current Arc Ignition Tester is mainly used to test the withstanding ability of solid insulating materials (including a variety of colloid and liquid use in solid state, solid before test.) when they are under the effect of high current arc frequently.


This instrument use Double Electrode with specified dimension & different materials (the electrostatic electrode is made of copper and the moving electrode is made of stainless steel).In a specified current (33A) and power factor (COS φ 0.5),repeated arc on the surface of the sample about 200 times to test whether the sample is ignition or not ,then to evaluate the withstanding ability of high current arc ignition performance of the sample.The test arc is usually at 254mm/s and the repetition frequency (40 /min).


Conform to standard:

IEC60950, UL746A, IEC60947.1, IEC730.1.


Technical Specification:

ModelAUTO-HAI
Power supply

220V/AC 15kVA 50Hz

accept customzied power supply

control languageEnglish,accept customized other language
ControllerPLC intelligent integrated control, touch interface operation
Electrode technical parameter

Ф3.5mm 30°copper electrostatic electrode

Ф3.0mm 60°stainless steel moving electrode

Arc Current33A
Arc Voltage220-240V
Arc Speed

254mm/s±25mm/s;

Arc frequency40 times/min
Power factor

COS φ 0.5

Maximum set times9999 times
