Introduction:

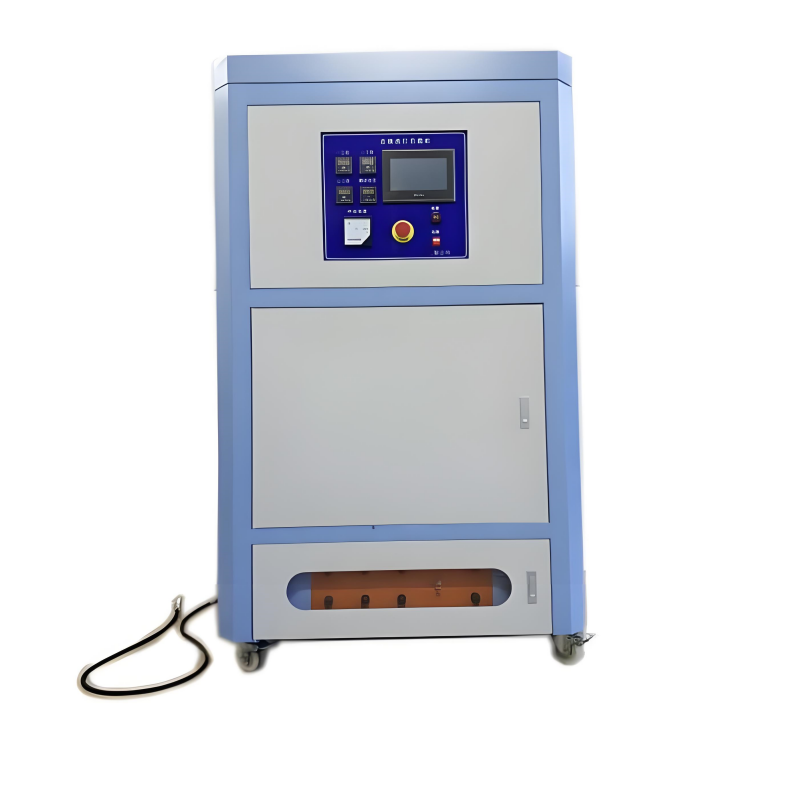

Self-ballasted lamp switch load cabinet is mainly used to control the self-ballasted lamp switch, should withstand the electrical stress and thermal stress when controlling the LED circuit without excessive damage or causing other harmful effects. The purpose is to evaluate whether the switch appears continuous flash arc, whether the contact is welded, and whether there is a long-term closure or disconnection of the contact, to check whether there is excessive wear and other harmful consequences. Self-ballasted load cabinet with leakage, over-voltage, over-current, overheating protection functions, suitable for household and similar use of fixed electrical equipment control self-discharge light switch for interruption capacity and normal life test. Is the switch manufacturer quality inspection, switch use manufacturer import inspection, the preferred equipment for switch testing.
Conform to standard:
IEC60669-1:2007《Switches for household and similar fixed-electrical installations - Part1:General requirements》clause 19.3
Technical Specification:
l Work station: three work station, independent output,optional.
l Controller:PLC intelligent integrated control, touch interface operation.
l Voltage range:from 0 to 300V with accuracy 0.5%.
l Power range:from 0 to 9KW with accuracy 0.5%.
l Output voltage: from 0 to 280V ,adjustable.
l Default switch rated voltage with 5 current mode switching:
mode 1, 250V 10A 100W
mode 2, 250V 13A 150W
mode 3, 250V 16A 200W
mode 4, 250V 16A 250W
mode 5, 250V 20A 350W
l All parameters are set according to 250V~at, including W, Ipeak, I²t and shock current waveform.
