Product details
Introduction:

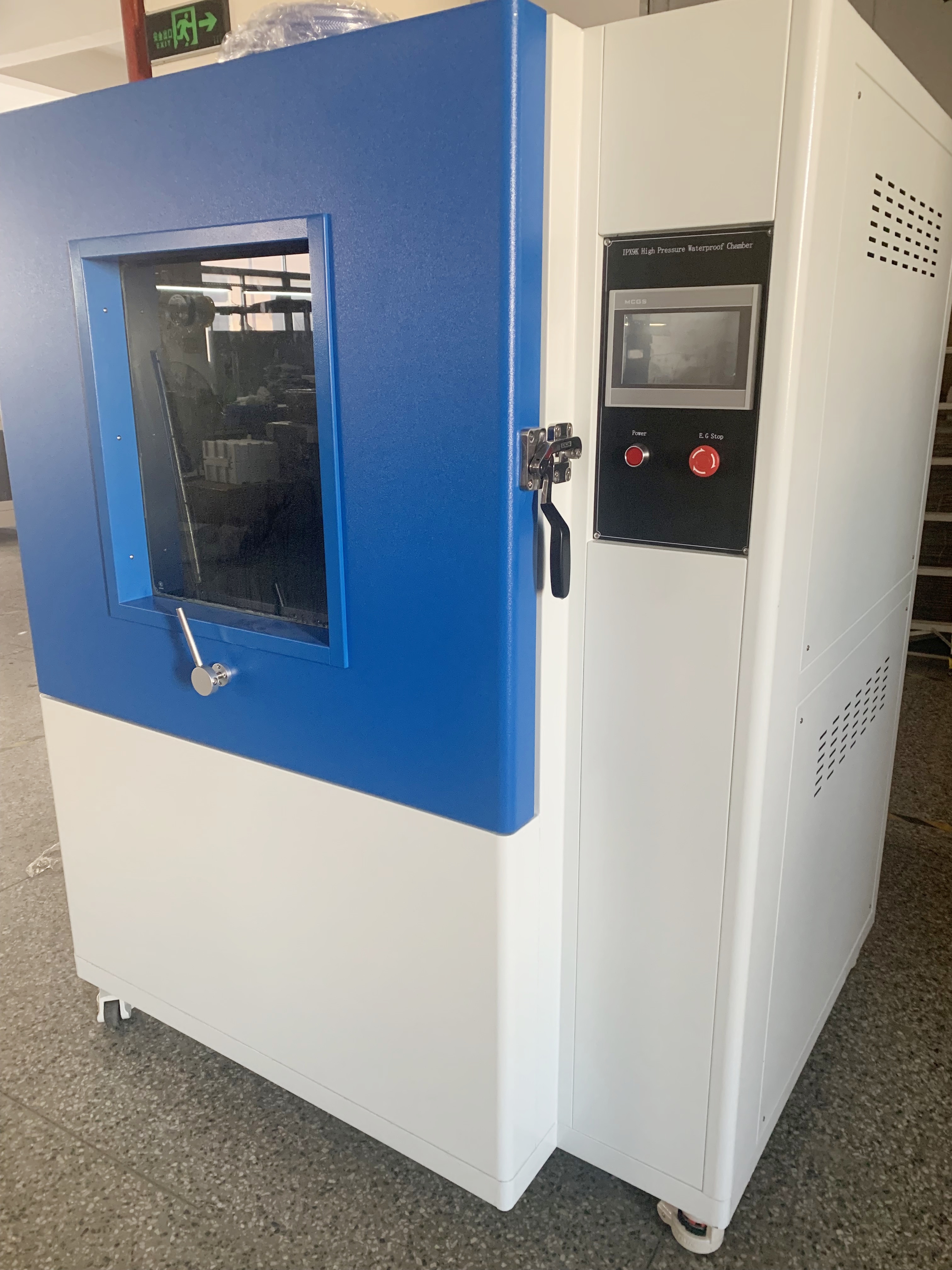

IEC60529 IPX9K High Pressure Hot Water Waterproof Test Chamber is mainly used in communications products, automotive components (such as car mirrors, car audio, automotive electronics, automotive lighting, automotive lighting, motorcycle lighting, motorcycle mirrors), outdoor lighting and signaling devices and other products need do waterproof performance testing and IP waterproof rating tests.
Conform to standard:
ISO 20653, VDEDIN 40050 (IP9K),GB/T 4208-2017/IEC 60529
Technical Specification:
| Model | AUTO-IPX9K |
| Inner Size | 1000*1000*1000mm LWH |
| Extenal | 1500*1500*1800mm LWH |
| Spray Nozzle | 0°，30°，60°，90° 4piece |
| Nozzle distance | 100～150mm adjustable |
| Flow | 14～16 L/min |
| Water pressure | 8000～10000kPa |
| Water temperature | 0～95°C |
| Turntable | turntable diameter Φ300mm with adjustable height |
| Turntable speed | 5±1r/min adjustable |
| Turntable loading capacity | 20kg |
| Control language | English,accept customized other language |
| Controller | PLC intelligent integrated control, touch interface operation |
| Power supply | 380V 50~60Hz 15KW three phase accept customzied power supply |
