IEC60695-2-10 Figure 1 Glow Wire Loop

Description:IEC60695-2-10 Figure 1 Glow Wire Loop

  • Model:AUTO-U
  • Manufacturer:Factory
  • Update time:2025-05-06
  • Visits:102
Product details

Introduction:

Glow Wire loop is a wire loop that is defined at a temperature and is pressed against a stan­dardized test platelet made of plastic(or other materials) for a prescribed period of time
under precise test condi­tions. The test examines whether the test specimen ignites, whether
the flames propagate and whether burning material drips.


Conform to standard:

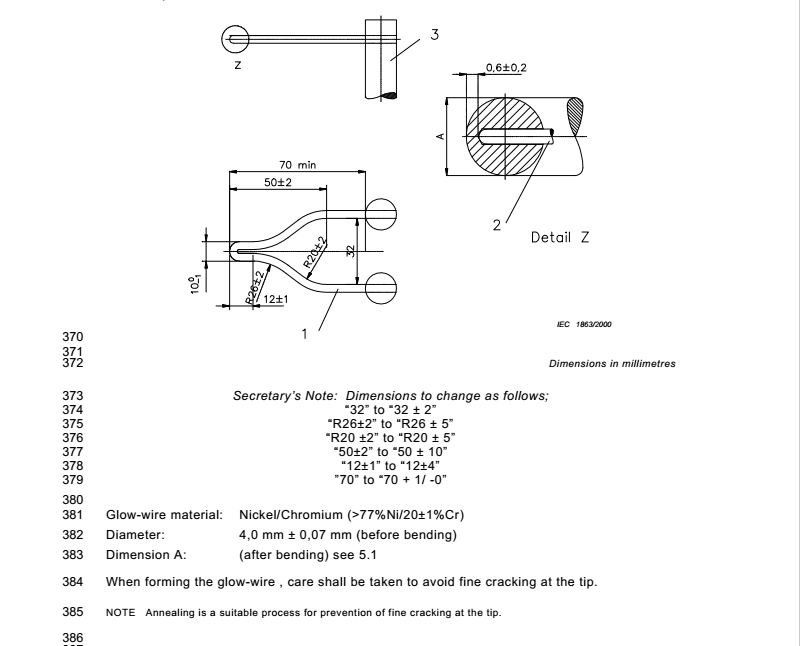

IEC60695-2-10 Figure 1


Technical Specification:

ModelAUTO-U
MaterialNickel/Chromium
Diameter of wire

Ø 4mm±0.04mmNi/Cr(80/20), standard

Width between terminals36mm
Hole Diameter0.5mm/1.0mm

2013 U.png
