Introduction:

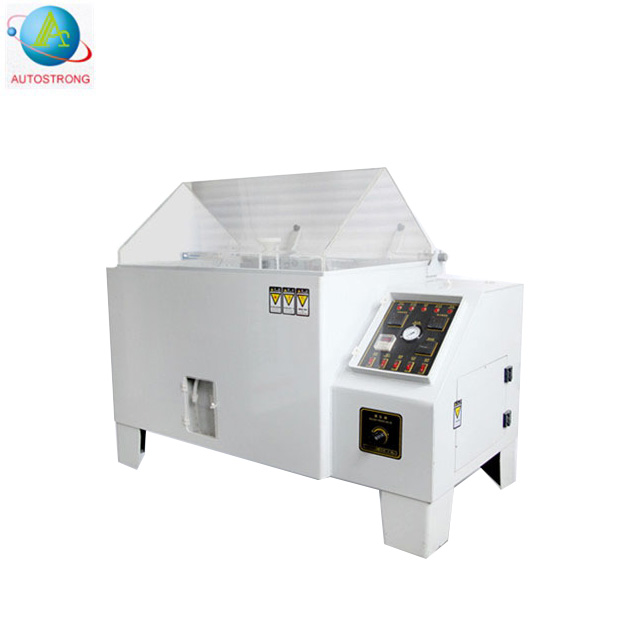

270L Salt Spray Test Machine is specially designed for test on the anti-corrosion function of the products after their surfaces have received such surface treatments as painting, coating,electroplating, anodic process and corrosion control oil.It is suitable for parts and components, electronic salt spray corrosion test element, a protective layer of metal materials and industrial products etc.
Conform to standard:CNS: 3627, 3385, 4159, 7669, 8886; JIS: D0201, H8502, H8610, K5400,
Z2371; ISO: 3768, 3769, 3770; ASTM: B117, B268
Technical Specification:
Model | AUTO-60 | AUTO-90 | AUTO-120 |
Inside box size(cm) | 60x45x40 | 90x60x50 | 120x80x50 |
Outside box size(cm) | 107x60x118 | 141x88x128 | 190x110x140 |
Testing room temperature | Salt test (NSS ACSS)35±1 degree / Corrosion Test (CASS)50±1 degree | ||
Pressure barrel temperature | Salt test (NSS ACSS)47±1 degree / Corrosion Test (CASS)63±1 degree | ||
Brine temperature | 35±1 degree or 50±1 degree | ||
Testing room Capacity | 108L | 270L | 480L |
Brine tank capacity | 15L | 25L | 40L |
Salt concentration | The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) | ||
Air pressure | 1.00±0.01kgf/cm2 | ||
Spray volume | 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average) | ||
PH | 6.5~7.2 3.0~3.2 | ||
Testing room relative humidity | 85% above | ||
Spray form | Programmable spray (Including continuous and intermittent spray) | ||
Power | AC220V 10A | AC220V 15A | AC220V 20A |
