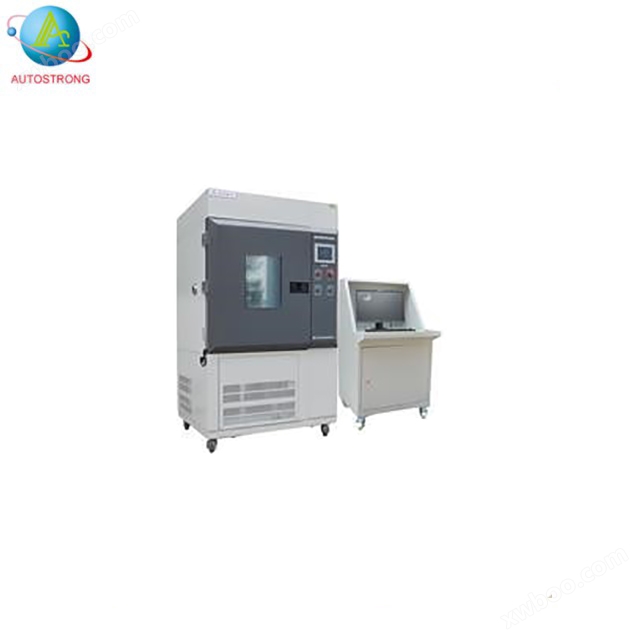

Battery Internal Short-Circuit Tester
Description:This Battery Short Circuit Tester is a comprehensive test system that applied for Lithium Battery as well as battery pack battery cell safety test. This battery tester is designed and manufactured in compliance with Japan Industrial Standard as JIS
Model:- Manufacturer:
- Update time:2023-11-29
- Visits:0
Product details
1).Fully Computerized control method and comprehensive battery test as 13KN crush,
deformation, voltage, temperature acquisition, and temperature control;
2).Servo motor with ball screw & explosion-proof cabinet are introduced for this battery system;
3).Internal chamber employs mirror stainless steel with viewing window, light, air blower,
universal wheel on the bottom that easy to mobile;
4).Software system control make an availability to set all operational parameters in an
direct way. Designed with attractive appearance & real-time monitoring that easy to
supervise the test process.
| Model | AUTO-6045W |
| Optional Functions | Temperature Acquisition, Camera Monitoring system, Fire-extinguishing system, explosion-proof system, smoke filtering system. |
| Decompression & smoke evacuation system | Decompression & smoke evacuation system on the chamber top |
| Temperature Technical Test Performance | |
| Temperature Range | 0℃~100℃ (Controllable) |
| Temperature Resolution | 0.01℃ |
| Temperature Fluctuation | ±0.5℃ |
| Control System | Imported Touch Screen Temperature Controller |
| Internal Short-Circuit Test Technical Performance | |
| Max. Load | 200kg |
| Force Resolution | 1/10000 |
| Velocity Range | 0.01-20mm/s |
| Actual Travel | 150mm (without fixture) |
| Test Size | 300×300 mm(Special requirement can be customized) |
| Crush Head | 5X5 mm,10X10 mm |
| Electrical Voltage Sampling Technical Parameters | |
| Voltage Sampling Range | 0—20V,0-100V(Available to Set) |
| Sampling Frequency | 100Hz/s |
| Voltage Resolution | 1MV |
| Test Chamber Structure | |
| Chamber | Free Stand with independent control cabinet |
| Communication | Compatible to RS232, 485 and also available to remote control in stable and real-time as well as explosion-proof function |
| Channel Qty Standard Configuration | 2 Channels, 4 Channels, 8 Channels, multi-data acquisition system(option) |
| Camera Monitoring System | Test Zone equips with high definition camera monitoring system and available to remote control with explosion-proof. (Option) |
| Voltage | AC220V 50Hz |
| Working Environment | 0℃~45℃ |
Standard Compliance:
IEC62133-2012 Forced internal short circuit
JISC8714:2007 Forced internal short circuit
