Swivel Connection Endurance Tester

Description:Tester is used to process the mechanical endurance and temperature rise test for the appliance incorporating a swivel connection.

  • Model:
  • Manufacturer:
  • Update time:2024-05-09
  • Visits:44
Product details


A pull force of 1N is applied to the supply cord,with rated voltage and the current being 1.25 times
the rated current.The appliance is rated its major axis at a rate of approximately 50rev/min,the
direction of rotation being reversed every 20 revolutions,test carried out for 1500 revolutions.



A pull force of 1N is applied to the supply cord,with rated voltage and the current being 1.25 times
the rated current.The appliance is rated its major axis at a rate of approximately 50rev/min,the direction
of rotation being reversed every 20 revolutions,test carried out for 1500 revolutions.

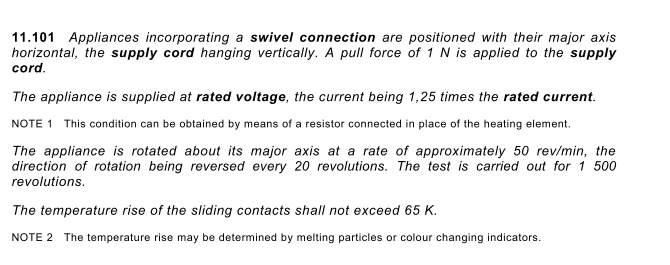

Conform to: IEC60335-2-23 clause 11.101
