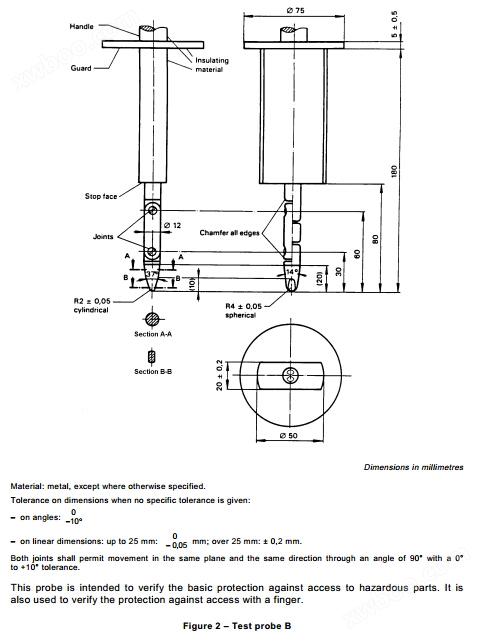

IEC61032 Figure 2 Test Probe B
Description:This is the International test finger required by most IEC, EN and CSA Standards, in addition to many UL Standards. Built in strict accordance to the newest requirements - with integral palm simulator.
Model:AUTO-B
Manufacturer:
Update time:2024-01-16
Visits:79
This is the ONLY Finger Probe available with a integral jack in the handle for continuity testing -
as mandated by the IEC CB Scheme. The handle is made of plastic and the finger is made of
chrome plated steel. All parts precision machined.
Model | AUTO-B |
Knurled finger diameter | 12mm |
Knurled finger length | 80mm |
Baffle plate diameter | 50mm |
Baffle plate length | 100mm |
Baffle thickness | 20mm |
Material | Plastic + stainless steel |
Optin Force | 10/20/30N |
Reference Standard: IEC61032,IEC60950,IEC60335,IEC60529,IEC60045,IEC60884,IEC69745-1
